基本参数
1.Material:
1.1 Housing:
LCP/9T
1.2
Contact:C7025,t=0.20/0.25mm
1.3 Shell:
SUS304
2.ELECTRICAL:
2-1:CURUENT
RATAING:VBUS AND GND
CONTACTS RATED AT 1.25A
PARALLELED
FOR A TOTAL OF 3A/5A
2-2:INITIAL
CONTACT RESISTANCE :40 MEGOHMS
2-3:DIEELECTRIC
WITHSTANDING VOLTAGE:100V AC
MIN
3.MECHANICAL CHARACTERISTICS:
3-1:MATING
FORCE:5~20N
3-2:UNMATING
FORCE:8~20N(INITIAL),6~20N(AFTER 10000
CYCLES)
3-3:FREQUENCE:200±50
CYCLES /HOUR,10000
CYCLES
3-4:OPERATING
TEMPERATURE;-40*~80*
4.WATER RESISTANCE：IPX7.
详细款式图纸3D模型以下可下载：
| NO. | Molde Code 品名 | Specifications 规格 | PDF下载 | 3D下载 |
| 1 | ZDX-CFMSF162CY01 | TYPE-C16PIN防水母座四脚板上型全贴片L=7.85MM |
|
|
| 2 | ZDX-CFMSF162CY02 | TYPE-C16PIN防水母座四脚板上前插后贴L=7.85MM |
|
|
| 3 | ZDX-CFMSF162CY04 | TYPE-C16PIN防水母座两脚板上前插后贴L=7.85MM |
|
|

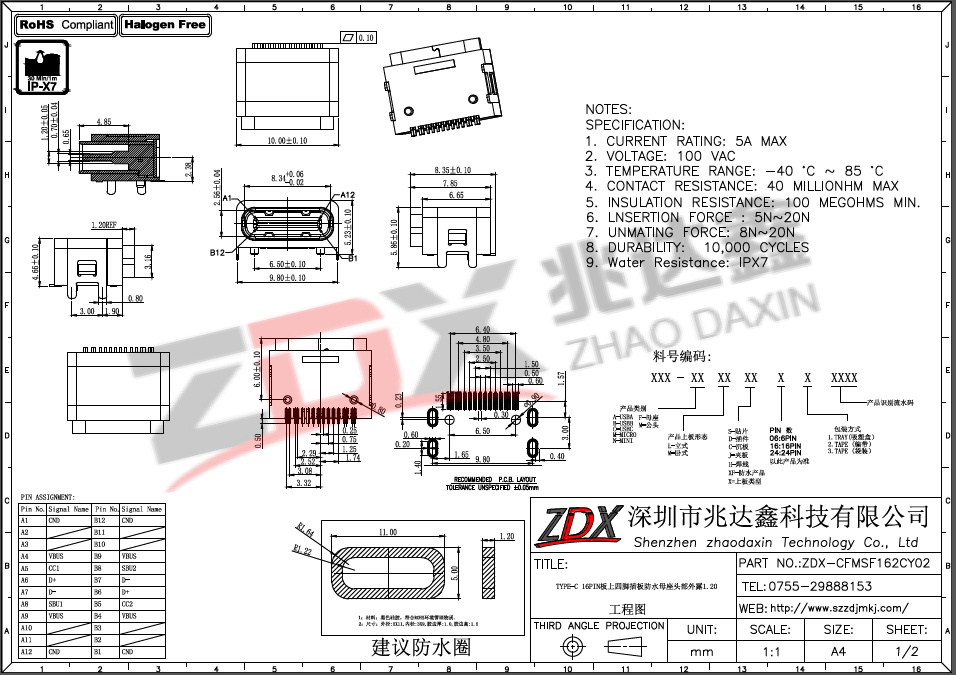

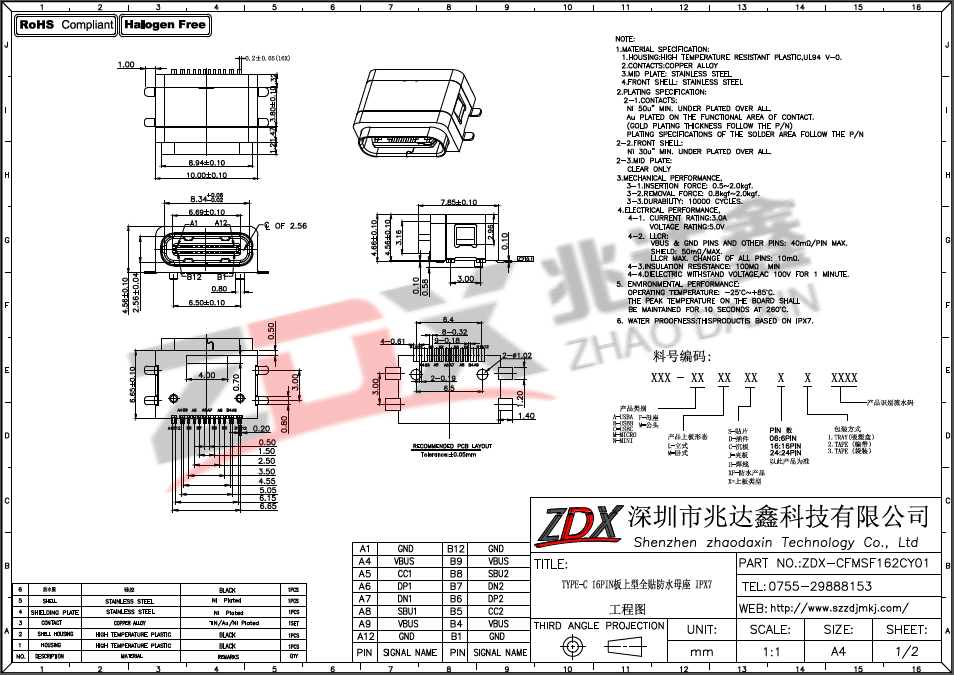

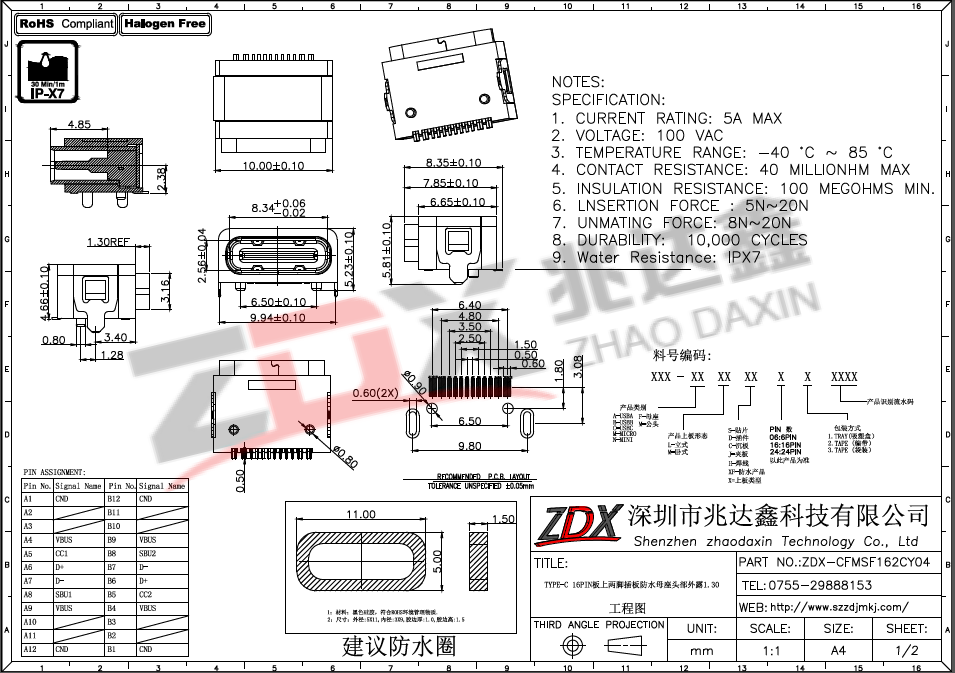

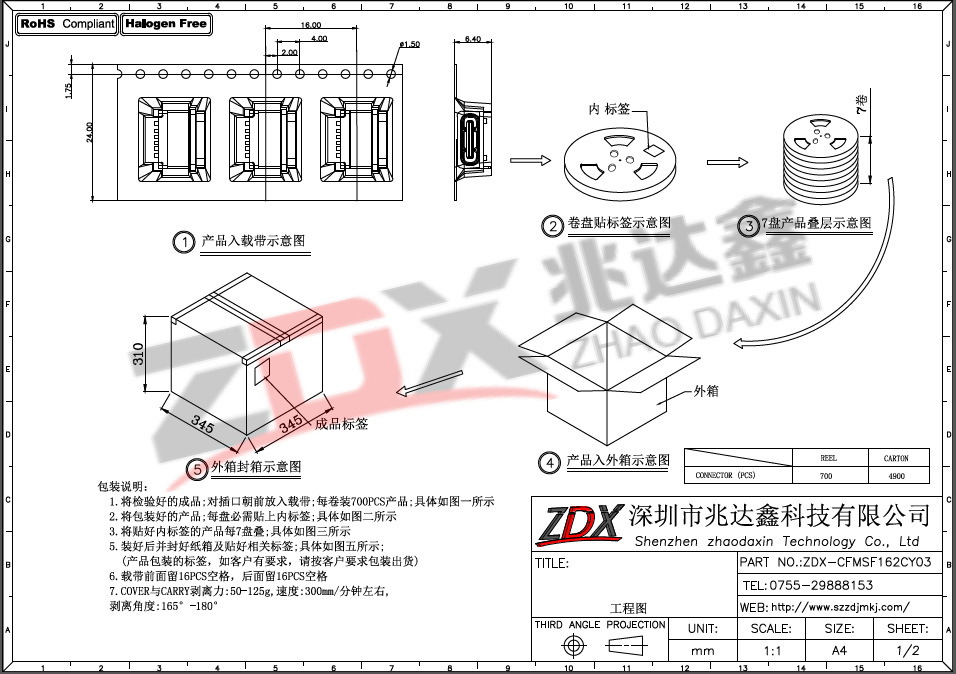

尺寸图
产品详情
